Autóspecifikus tolatókamera Audi gépjárművekhez - BCADI02

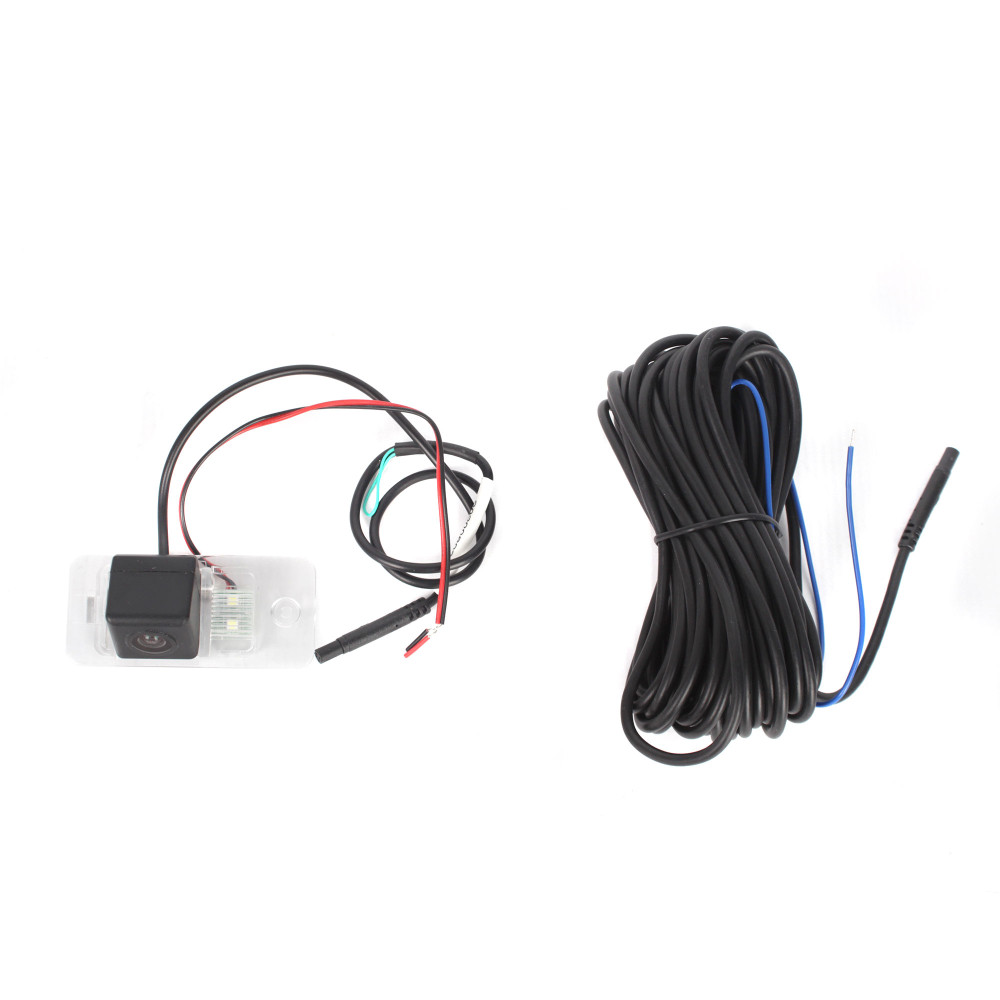

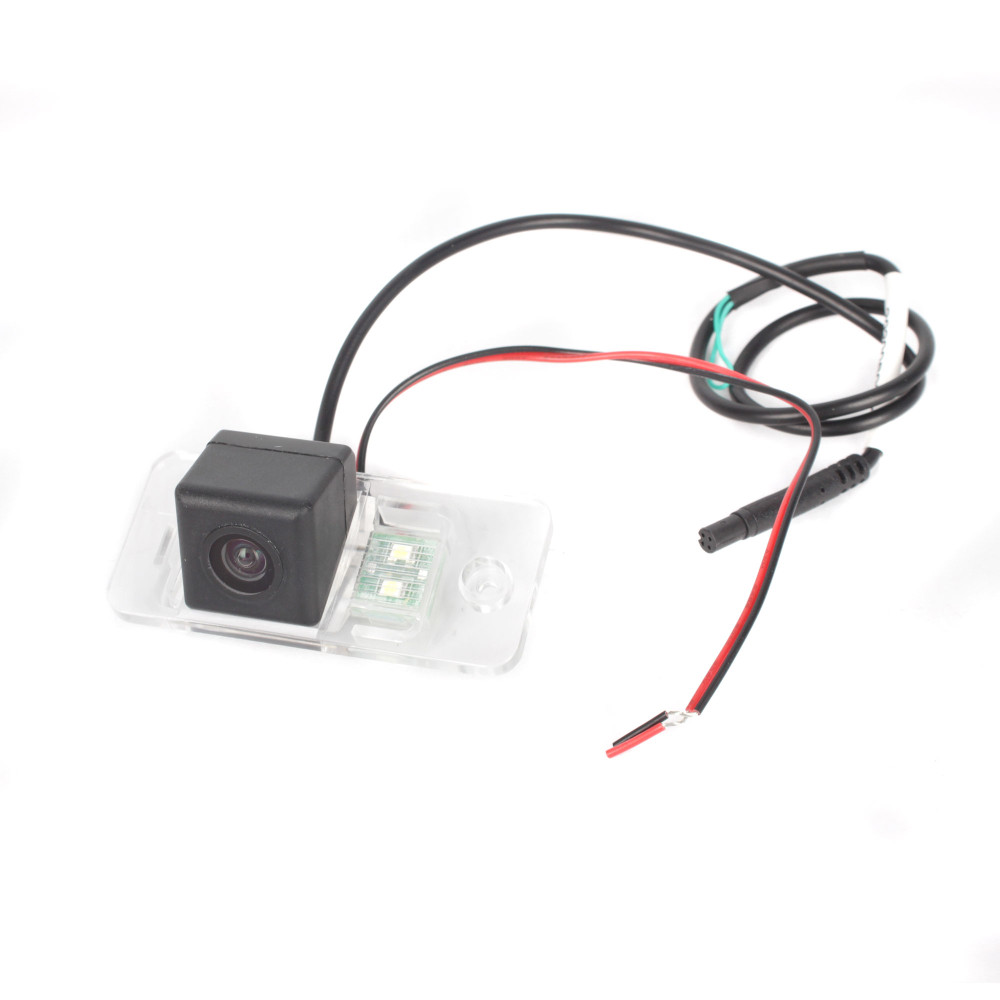

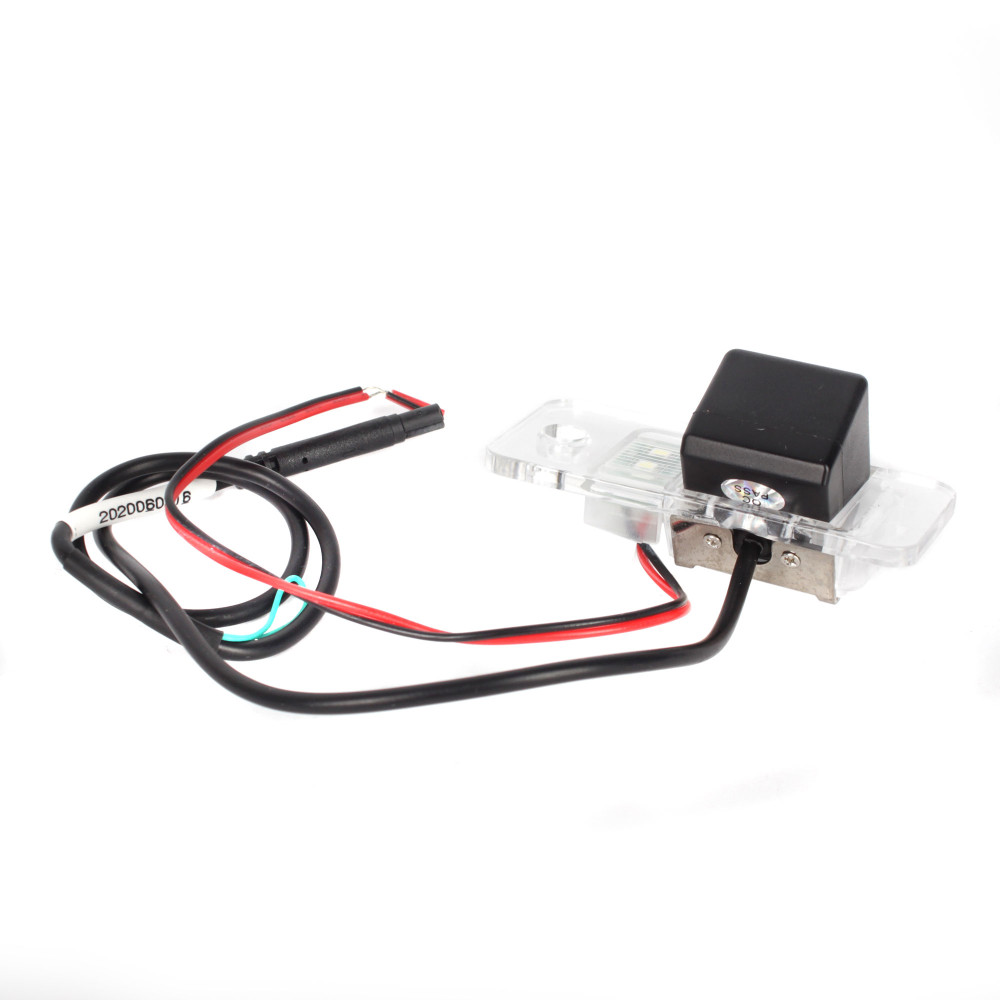

 BCADI02 Hátsó rendszámtábla világítás helyére illeszthető színes tolatókamera.

A következő modellekhez:

• AUDI A3 [8P] (2003-2010)

• AUDI S3 (2007->)

• AUDI A4 [B6] (2001-2005) sedan / combi

• AUDI A4 [B7] (2005-2008) sedan / combi

• AUDI A5 (2007->)

• AUDI S5 (2007->)

• AUDI A6 [C5](1997-2004) sedan / combi

• AUDI A6 [C6] (2005-2011) sedan / combi

• AUDI Q7 (2007->)

Technical parameters:

• sensor: PC3089 1/3"

• option to enable/disable to display the guide lines

• electronic Aperture: 1/60 1/10000 sec.

• minimum lighting: 0.1Lux

• signal-to-noise ratio:> 48dB

• TV system: NTSC (supported by each monitor/head unit)

• number of TV lines: 600

• effective pixels 668 × 576 pixels

• weather protection: IP67

• view angle: 170°

• camera body: durable plastics "private housing"

• image display: mirror

• operating temperature from -30 °C to + 70 °C

• AGC, BLC, white balance: automatically

• signal cable: 6.2 m long with CINCH / RCA connector

• video output: 1.0V / 75 Ohm

• power cord length: 1m

• power supply: 12V DC

• consumption: <1W

Camera dimensions

• base 32 x 70 mm

• the distance between the bolt hole and the tongue 58 mm
