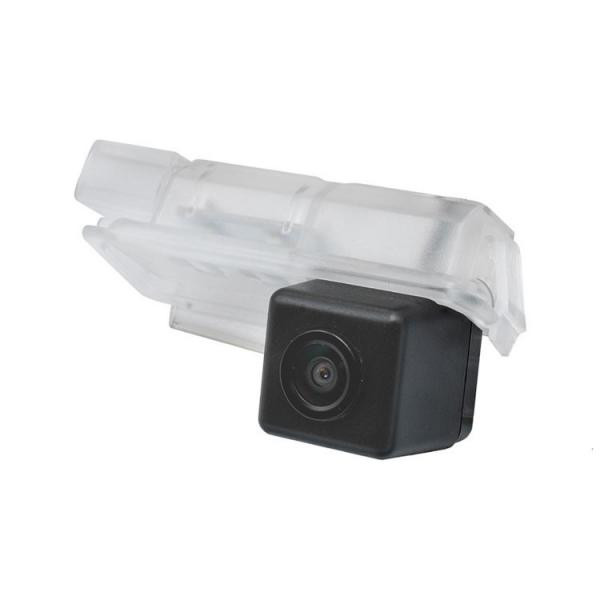

Hátsó rendszámtábla világítás helyére illeszthető színes tolatókamera.
A következő modellekhez:
- VW Golf VII. [5G1] (11 / 2012->)
- VW Eos [1F7] (2014->)
- VW Beetle II. [5C1] (2014->)
- VW Scirocco [137] (5 / 2008->)
- VW CC (11 / 2014->)
- SEAT Leon III. [5F1] (9 / 2012->)
Technical parameters:
- sensor: PC3089 1/3"
- option to enable/disable to display the guide lines
- electronic Aperture: 1/60 1/10000 sec.
- minimum lighting: 0.1Lux
- signal-to-noise ratio:> 48dB
- TV system: NTSC (supported by each monitor/head unit)
- number of TV lines: 600
- effective pixels 668 × 576 pixels
- weather protection: IP67
- view angle: 170°
- camera body: durable plastics "private housing"
- image display: mirror
- operating temperature from -30 °C to + 70 °C
- AGC, BLC, white balance: automatically
- signal cable: 6.2 m long with CINCH / RCA connector
- video output: 1.0V / 75 Ohm
- power cord length: 1m
- power supply: 12V DC
- consumption: <1W
Camera dimensions:
